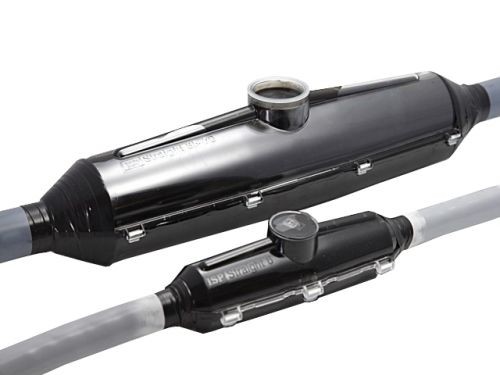

Straight cast resin cable joints are suitable for plastic and paper insulated LV cables. These joints are suitable for use in power, telecoms and signalisation. The joints are approved in accordance with the standard DIN EN 50393 (VDE 0278-393):2006-11.
Designed for UK armoured cables to allow plenty of room to work.
Type tested according to: EN 50393:2006-11.
Hydrolysis resistant polyurethane resin in a transparant 2 component bag.
Strong transparant shells.
Fully waterproof, no leakage of resin.
Cable spacers included.Complete kit, sealing tape, sandpaper, and protective gloves inclusive.
Installation instructions with clear drawings.
Easy and quick installation.
Cable diameter - 12 - 32mm
L=250mm x D=45mm
Other Sizes
| Part No |
Cable diameter mm |
Dimensions |
| EC20 |
6 - 28 |
L=200mm x D=35mm |
| Un-armoured |
|
|
|
|
|
| |
|
|
|
|
|
| Size of conductor |
1 core Un-armoured |
2 core Un-armoured |
3 core Un-armoured |
4 core Un-armoured |
5 core Un-armoured |
| 1.5mm² |
N/A |
EC20 |
EC20 |
EC20 |
N/A |
| 2.5mm² |
N/A |
EC20 |
EC20 |
EC20 |
N/A |
| 4mm² |
N/A |
EC20 |
EC20 |
EC20 |
N/A |
| 6mm² |
N/A |
EC20 |
EC20 |
EC20 |
N/A |
| |
|
|
|
|
|
| Armoured |
|
|
|
|
|
| |
|
|
|
|
|
| Size of conductor |
1 core Armoured |
2 core Armoured |
3 core Armoured |
4 core Armoured |
5 core Armoured |
| 1.5mm² |
N/A |
EC20 |
EC20 |
EC20 |
N/A |
| 2.5mm² |
N/A |
EC20 |
EC20 |
EC20 |
N/A |
| 4mm² |
N/A |
EC20 |
EC20 |
EC20 |
N/A |
| 6mm² |
N/A |
EC20 |
EC20 |
EC20 |
N/A |
| 10mm² |
N/A |
N/A |
EC21 |
EC21 |
N/A |
| 16mm² |
N/A |
N/A |
EC21 |
EC21 |
N/A |
Product Code: EC21
